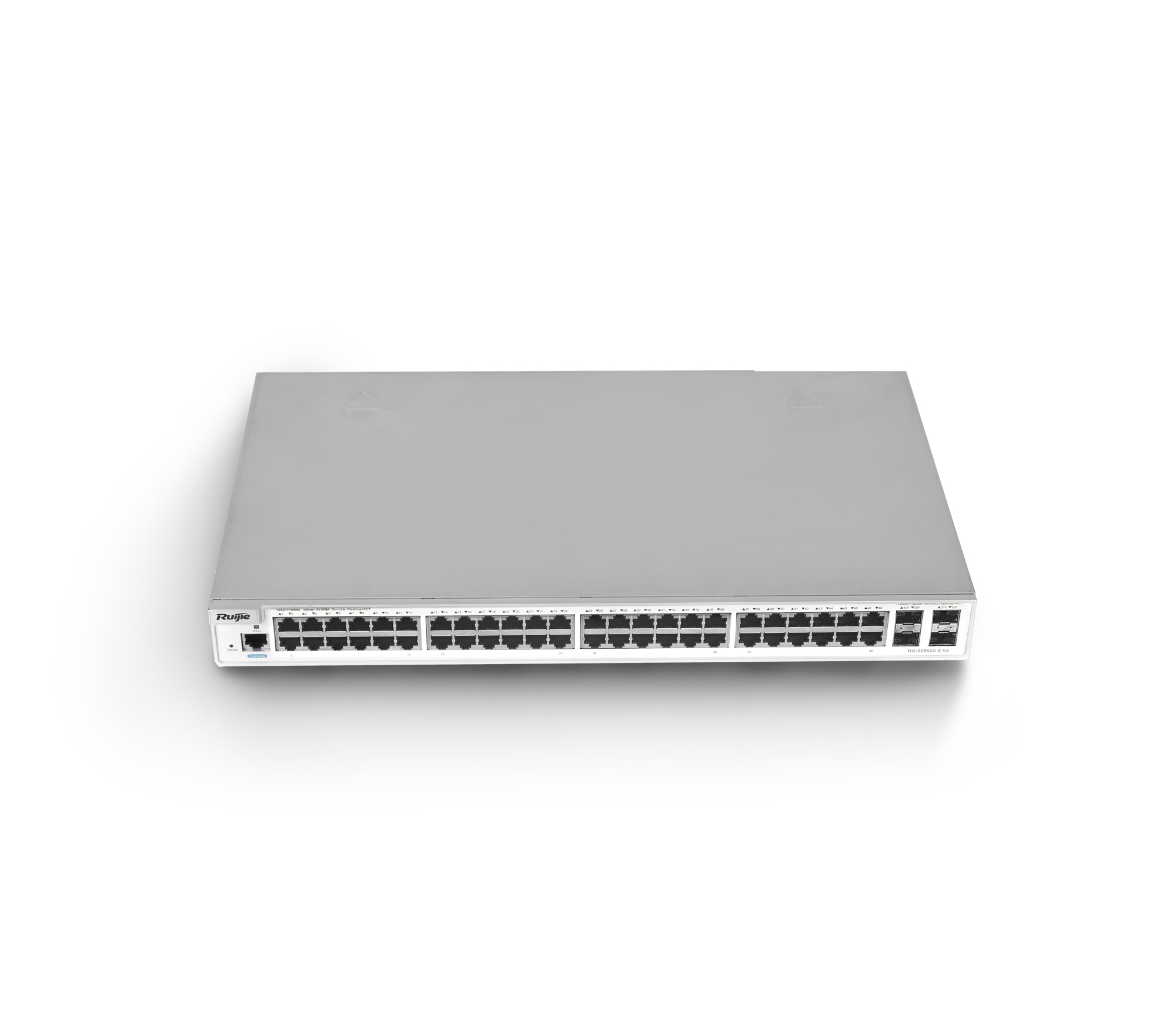

Ruijie RG-S2952G-E V3, 48-port Gigabit access switch, 4 Gigabit uplink

Ruijie RG-S2900G-E V3 Serie je kolekce multiservisních přepínačů nové generace, které nabízejí pozoruhodný výkon a vylepšené zabezpečení. Díky implementaci špičkového hardwarového designu a nejnovějšímu modulárnímu operačnímu systému Ruijie RGOS11.X nabízejí přepínače lepší kapacitu tabulky, vylepšený výkon hardwarového zpracování a jednodušší uživatelskou obsluhu.

Ports 48 10/100/1000BASE-T ports 4 1G SFP ports (non-combo)

Fan Slots Fanless Fixed Management Ports 1 console port

Switching Capacity Up to 256Gbps

Packet Forwarding Rate Up to 96Mpps Up to 132Mpps Port Buffer 1.5MB

ARP Table 1,000

MAC Address Up to 16K

Routing Entries 500

IP Host Entries (IPv4/IPv6) 500 (IPv4/IPv6)

ACL Entries Up to 1,500 ACL Standard/Extended/Expert ACL, Extended MAC ACL, ACL 80, IPv6 ACL, ACL logging, ACL counter, ACL remark, Global ACL, ACL redirect QoS 802.1p/DSCP/TOS traffic classification; Multiple queue scheduling mechanisms, such as SP, WRR, DRR, SP+WFQ, SP+WRR, SP+DRR; Input port-based speed limit; Port-based traffic recognition; Each port supports 8 queue priorities VLAN 4K 802.1q VLANs, Port-based VLAN, MAC-based VLAN, Protocol-based VLAN, Private VLAN, Voice VLAN, QinQ, IP subnet-based VLAN, GVRP QinQ Basic QinQ, Flexible QinQ, 1:1 VLAN switching Link Aggregation AP, LACP, Flow balance Port Mirroring Many-to-one mirroring, One-to-Many mirroring, Flow-based mirroring, Over devices mirroring, VLAN-based mirroring, VLAN-filtering mirroring, AP-port mirroring, RSPAN, ERSPAN Spanning Tree Protocols IEEE802.1d STP, IEEE802.1w RSTP, Standard 802.1s MSTP, Port fast, BPDU filter, BPDU guard, TC guard, TC filter, TC protection, LOOP guard, ROOT guard DHCP DHCP server, DHCP client, DHCP snooping, DHCP relay, IPv6 DHCP snooping, IPv6 DHCP client, IPv6 DHCP relay Multiple Spanning Tree Protocol (MSTP) Instances 64 Maximum Aggregation Port (AP) Up to 128 Multicast IGMP v1/v2/v3 snooping, IGMP SGVL/IVGL, IGMP filter, IGMP fast leave, MLD snooping v1/v2 SDN OpenFlow 1.0, future support OpenFlow 1.3 EEE Format Support IEEE 802.3az standard G.8032 Support L2 Features MAC, EEE, ARP, VLAN, Basic QinQ, Felix QinQ, Link aggregation, Mirroring, STP, RSTP, MSTP, Broadcast storm control, IGMP v1/v2/v3 snooping, IGMP SGVL/IVGL, IGMP filter, IGMP fast leave, DHCP, Jumbo frame, RLDP, LLDP, REUP, G.8032 ERPS, Layer 2 protocol tunnel Layer 2 Protocols IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3x, IEEE802.3ad, IEEE802.1p, IEEE802.1x, IEEE802.3ab, IEEE802.1Q (GVRP), IEEE802.1d, IEEE802.1w, IEEE802.1s Security Binding of the IP address, MAC address, and port address; Binding of the IPv6, MAC address, and port address; Filter illegal MAC addresses; Port-based and MAC-based 802.1x; MAB; Portal and Portal 2.0 authentication; ARP-check; DAI; Restriction on the rate of ARP packets; Gateway anti-ARP spoofing; Broadcast suppression; Hierarchical management by administrators and password protection; RADIUS and TACACS+; AAA security authentication (IPv4/IPv6) in device login management; SSH and SSH V2.0; BPDU guard; IP source guard; CPP, NFPP; Port protection Layer 3 Features IPv4 static routing, IPv6 static routing, RIP, RIPng, OSPFv2/v3, ARP proxy, Neighbor Discovery,VRRP Layer 3 Protocols (IPv4) Static routing, RIP, RIPng, OSPFv2/v3 IPv4 Features Ping, Traceroute IPv6 Features 0-64 any length mask, ICMPv6, Neighbor Discovery, Manually configure local address, Automatically create local address, IPv6 Ping, IPv6 Tracert, IPv6 extender option head,VRRP v3 Basic IPv6 Protocols IPv6 addressing, Neighbor Discovery (ND), IPv6 ACL, ICMPv6, IPv6 Ping, IPv6 Tracert IPv6 Routing Protocols Static routing, RIPng, OSPFv3 VSU (Virtual Switch Unit) Support (up to 9 stack members,to ensure the effectiveness of the use, 4 members are recommended) Zero Configuration CWMP(TR069) Reliability RAS VSU (virtualization technology for virtualizing multiple devices into 1); GR for RIP/OSPF; ERPS (G.8032); REUP dual-link fast switching technology; RLDP (Rapid Link Detection Protocol) Manageability SNMPv1/v2c/v3, CLI (Telnet/Console), RMON (1, 2, 3, 9), SSH, Syslog/Debug, RSPAN/ERSPAN, NTP/SNTP, FTP, TFTP, Web, SFLOW,support cable detection and port sleep mode Smart Temperature Control Fanless Auto fan speed adjustment; Fan malfunction alerts; Fan status check Other Protocols FTP, TFTP, DNS client, DNS static Dimensions (W x D x H) (mm) 440 × 260 × 43.6 Rack Height 1RU Weight ?3.5kg ?4kg MTBF 482560 hours 372690 hours Lightning Protection 6KV Power Supply AC input: Rated voltage range: 100V to 240V AC Maximum voltage range: 90V to 264V AC Frequency: 50 to 60Hz HVDC input: Input voltage range: 192V to 290V DC Power Consumption ?24W ?40W Temperature Operating temperature: 0°C to 50°C Storage temperature: -40°C to 70°C Humidity Operating humidity: 10% to 90%RH Storage humidity: 5% to 95%RH Operating Altitude -500m to 5,000m Safety Standards IEC 60950-1,EN60950-1 Emission Standards EN 300 386, EN 55032, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11
