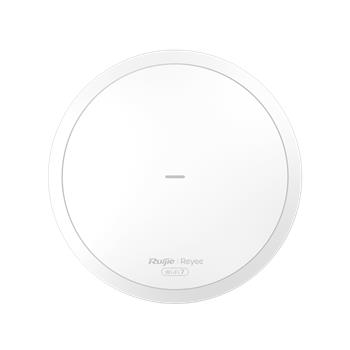

Reyee RG-RAP72, Wi-Fi 7 BE3600 Ceiling-Mount Access Point


Reyee RG-RAP72, Wi-Fi 7 BE3600 Ceiling-Mount Access Point

Kód
PV429500
Part No.
RG-RAP72
Výrobce
Reyee
Záruka
36 Měsíce
Dostupnost
Koncová cena bez DPH + RP

Vaše cena bez DPH a poplatků
DPH
21%
Vaše cena s DPH (21%)


    Základní informace

    • AI-powered Wi-Fi 7 ceiling-mount AP with dual-radio performance
    • Support AI Optimization (WIO 3.0)
    • Easy installation, compact size
    • New circular design, seamlessly blending with different decoration styles
    • Tailored for business needs with Reyee Mesh, standalone portal, and AI roaming features

    Hardware Specifications

    Wi-Fi Radio

    Radio design: Dual-radio

      4 spatial streams

    ? 2.4 GHz: 2 x 2, MU-MIMO

    ? 5 GHz: 2 x 2, MU-MIMO

    Maximum wireless data rate: 3570 Mbps

    6 GHz wireless data rate: No

    5 GHz wireless data rate: 2882 Mbps

    2.4 GHz wireless data rate: 688 Mbps

    Antenna

    Antenna

      • 2.4 GHz: 2 built-in omnidirectional antennas
      • 5 GHz: 3 built-in omnidirectional antennas

    Dimensions and Weight

    Product dimensions (diameter x height): O195 mm x 41 mm (O7.68 in. x 1.61 in.) (excluding the mounting bracket)

    Color: White

    Weight: ≤ 0.6 kg (1.32 lbs.) (without packaging materials)

    Port Specifications

    Number of 10/100/1000/2500BASE-T ports: 1

    Power Supply and Consumption

    Power supply:

    ? DC power adapter

    ? PoE/PoE+

    Note: If both the DC power adapter and PoE/PoE+ are available for power supply, the DC power adapter is preferred.

    Local power supply: Yes, one DC power connector (12 V, 1.5 A)

    Dimensions of the DC connector

      • Outer diameter: 5.5 mm (0.22 in.)
      • Inner diameter: 2.1 mm (0.08 in.)
      • Depth: 10 mm (0.39 in.)

    PoE budget: No

    Maximum power consumption: 14 W

    Environment and Reliability

    Operating temperature: 0°C to 40°C (32°F to 104°F)

    Mounting options: Ceiling/Wall

    IP rating: IP41

    Software Specifications

    WLAN

    Maximum number of associated wireless clients:

      • 64 (2.4 GHz)
      • 511 (5 GHz)
      • 511 (2.4 GHz and 5 GHz enabled)

    Maximum number of devices that can be managed: 300

    IP Service

    IPv6: Yes


    Produkt manažer:

    Augustin Uhlíř,  +420773749013,  uhlir@pcvcomp.cz

    Technické parametry

    Ethernetové porty 1 × RJ45 10/100/1000 Mbps
    Management Ano
    PoE napájení Ano
    POE-in 802.3af/at/bt
    Provedení Plast, Indoor
    Rychlost LAN 10/100/1000 Mbps
    SFP+ 1
    Wi-Fi standard 2,4GHz 802.11b/g/n/ax dual-chain
    Wi-Fi standard 5GHz 802.11a/n/ac/ax dual-chain
