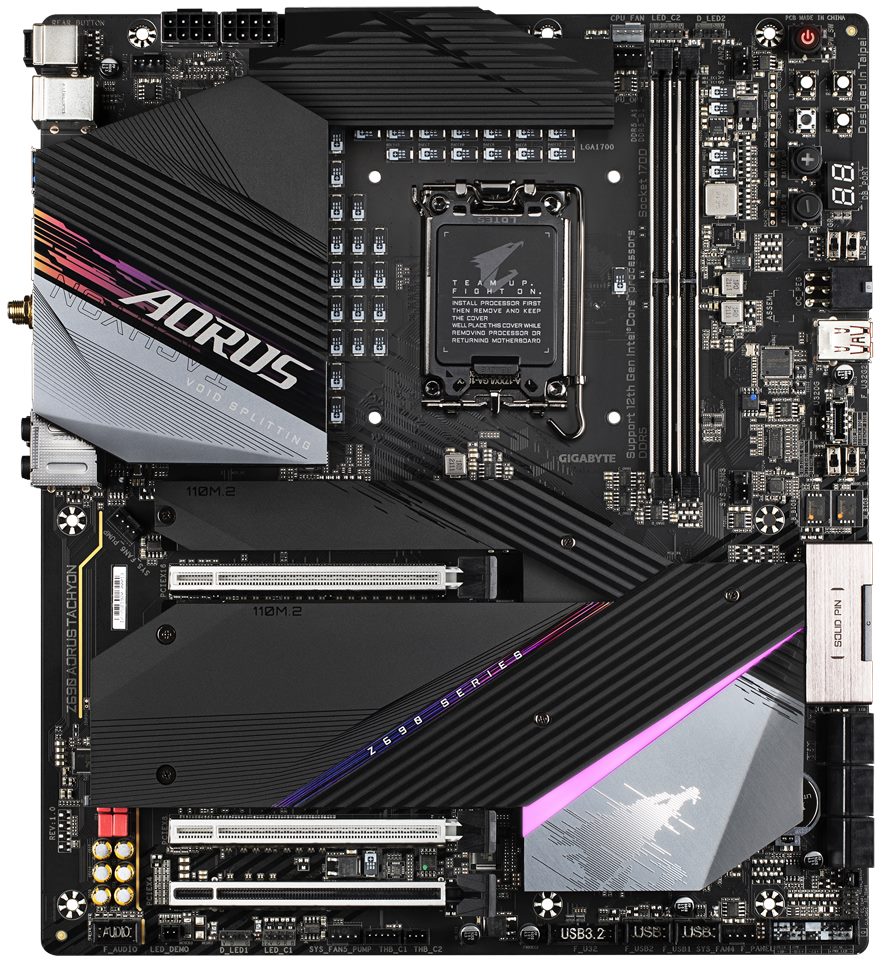

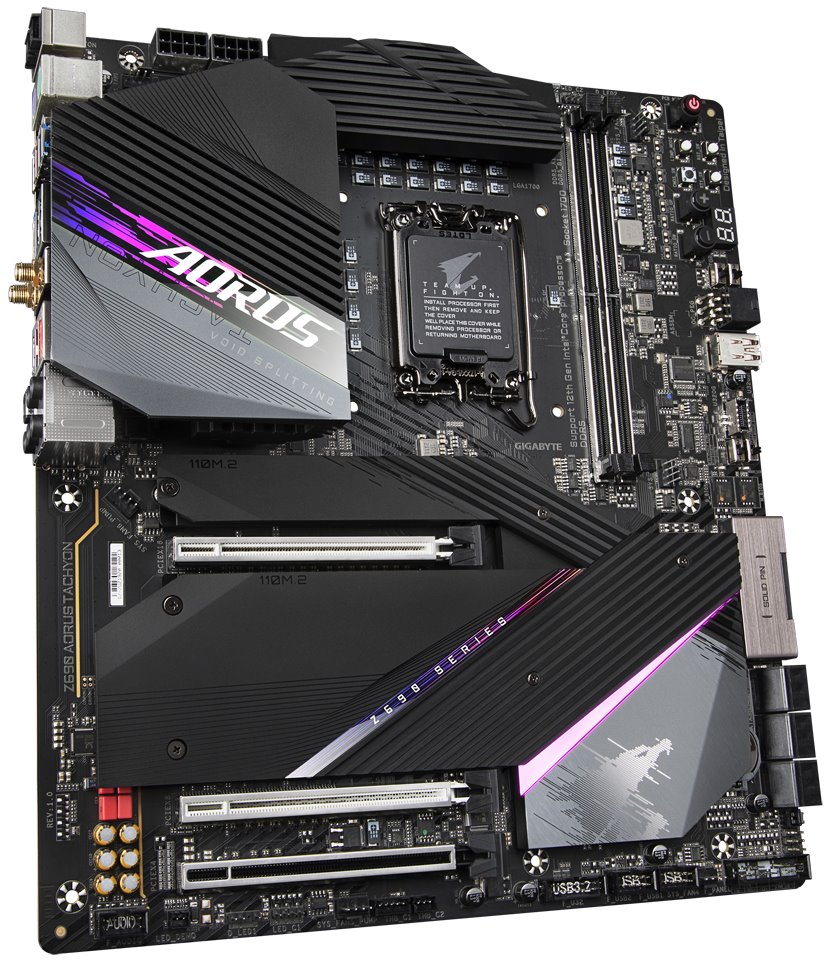

GIGABYTE Z690 AORUS TACHYON (rev. 1.0)

Chipset: Intel Z690 Express Chipset Rozměrový formát: E-ATX Form Factor; (30.5cm x 27.0cm) Podpora pro procesory: 12th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors Patice procesoru: LGA 1700 Pozice na paměti: 2 x DDR5 DIMM, Dual channel memory architecture Podpora pro paměti: DDR5 7000(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules Max.velikost operační paměti: 64 GB Podpora pro paměti typu: ECC, XMP Grafická karta: Intel HD Graphics *1 x HDMI port - 4096x2160@60 Hz Zvuková karta: Realtek ALC1220-VB CODEC *2/4/5.1/7.1-channel *Podpora S/PDIF Out Síťová karta: *Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) *Intel Wi-Fi 6E AX210 - WIFI a, b, g, n, ac, ax *Bluetooth 5.2 Rozšiřující sloty: *1 x PCI Express x16 slot, running at x16 (PCI Express 5.0 standard) *1 x PCI Express x16 slot, running at x8 (PCI Express 5.0 standard) *1 x PCI Express x16 slot, running at x4 (PCI Express 3.0 standard) RAID řadič: RAID 0, RAID 1, RAID 5, and RAID 10 SATA: 6 x SATA 6Gb/s connectors M.2: 4 x M.2 Socket 3 connectors USB: *Interní: *1 x USB Type-C header, with USB 3.2 Gen 2x2 support *1 x USB 3.2 Gen 2 Type-A port (red) *1 x USB 3.2 Gen 1 header *2 x USB 2.0/1.1 headers *Externí: *1 x USB Type-C port, with USB 3.2 Gen 2x2 support *3 x USB 3.2 Gen 2 Type-A ports (red) *4 x USB 3.2 Gen 1 ports Interní porty: *1 x 24-pin ATX main power connector *2 x 8-pin ATX 12V power connectors *1 x 6-pin OC_PEG power connector *1 x CPU fan header *1 x water cooling CPU fan header *4 x system fan headers *2 x system fan/water cooling pump headers *2 x addressable LED strip headers *2 x RGB LED strip headers *4 x M.2 Socket 3 connectors *6 x SATA 6Gb/s connectors *1 x front panel header *1 x front panel audio header *1 x USB Type-C header, with USB 3.2 Gen 2x2 support *1 x USB 3.2 Gen 2 Type-A port (red) *1 x USB 3.2 Gen 1 header *2 x USB 2.0/1.1 headers *1 x noise detection header *2 x Thunderbolt add-in card connectors *2 x temperature sensor headers *Voltage Measurement Points *1 x Clear CMOS jumper *1 x power button (PW_SW) *1 x reset button (RST_SW) *1 x Clear CMOS button (CMOS_SW) *1 x Cold Reset button (RTY_SW) *1 x Protection Mode button (LIMP_MODE) *2 x BIOS switches (BIOS_SW/SB) *1 x CPU Ratio up button (RATIO_UP) *1 x CPU Ratio down button (RATIO_DW) *1 x OC Trigger switch (TGR) *1 x Reserved switch (RSV_SW) Externí porty: *1 x Q-Flash Plus button *1 x OC Ignition button *1 x PS/2 keyboard port *1 x PS/2 mouse port *2 x SMA antenna connectors (2T2R) *1 x HDMI port *1 x USB Type-C port, with USB 3.2 Gen 2x2 support *3 x USB 3.2 Gen 2 Type-A ports (red) *4 x USB 3.2 Gen 1 ports *1 x RJ-45 port *1 x optical S/PDIF Out connector *5 x audio jacks BIOS: AMI UEFI BIOS, 2 x 256 Mbit flash Stránka výrobce: http://www.gigabyte.com/Motherboard/Z690-AORUS-TACHYON-rev-10#kf
