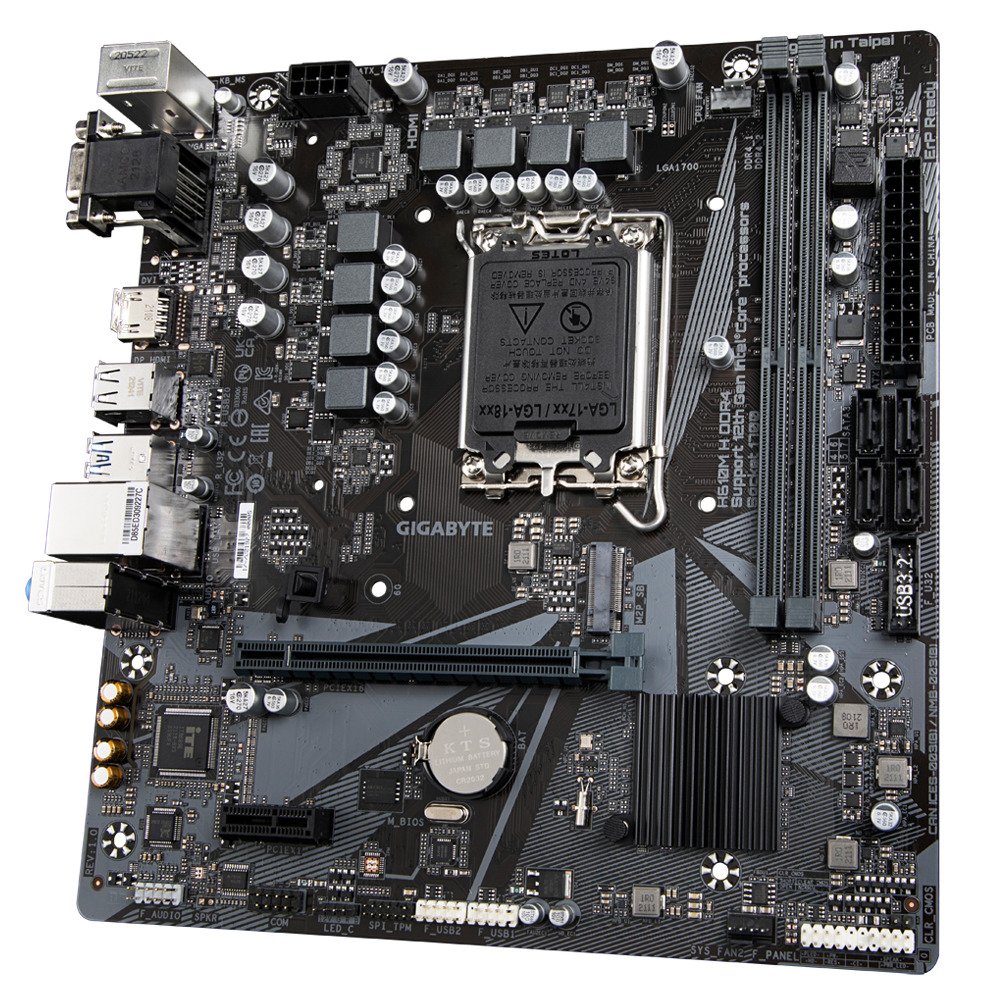

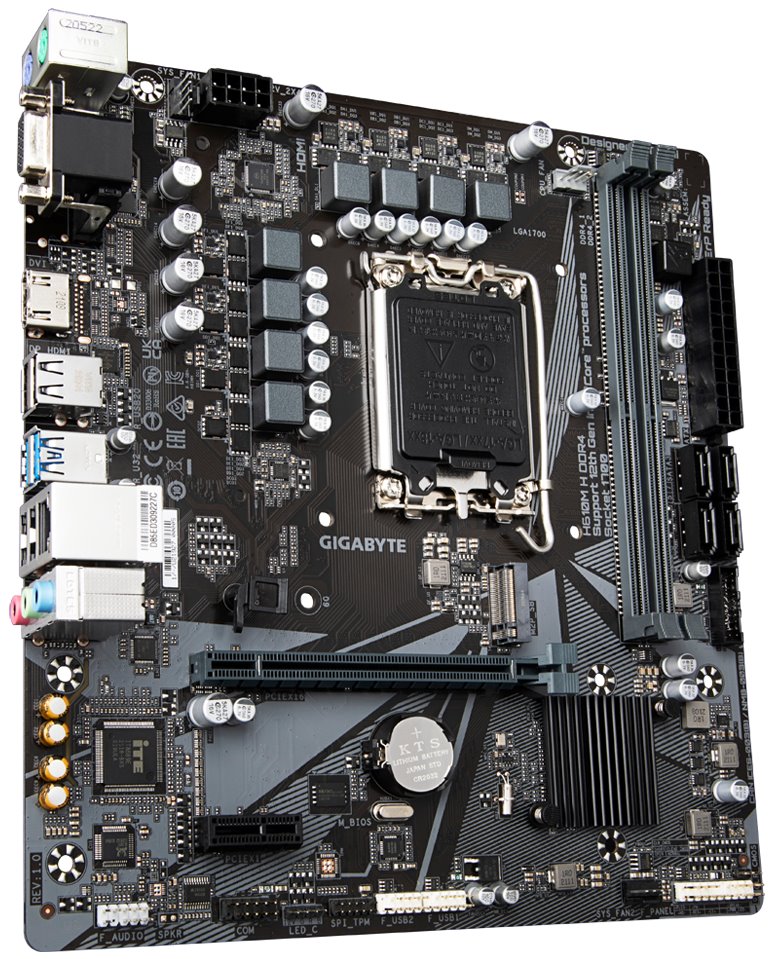

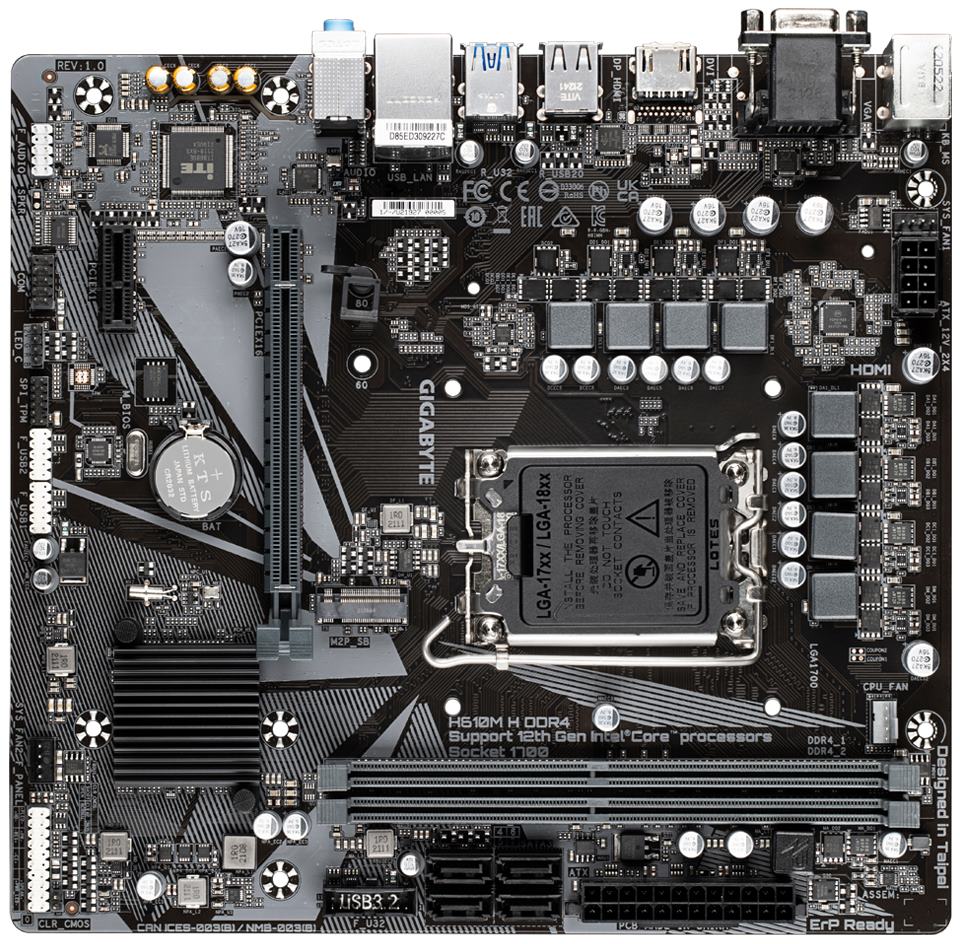

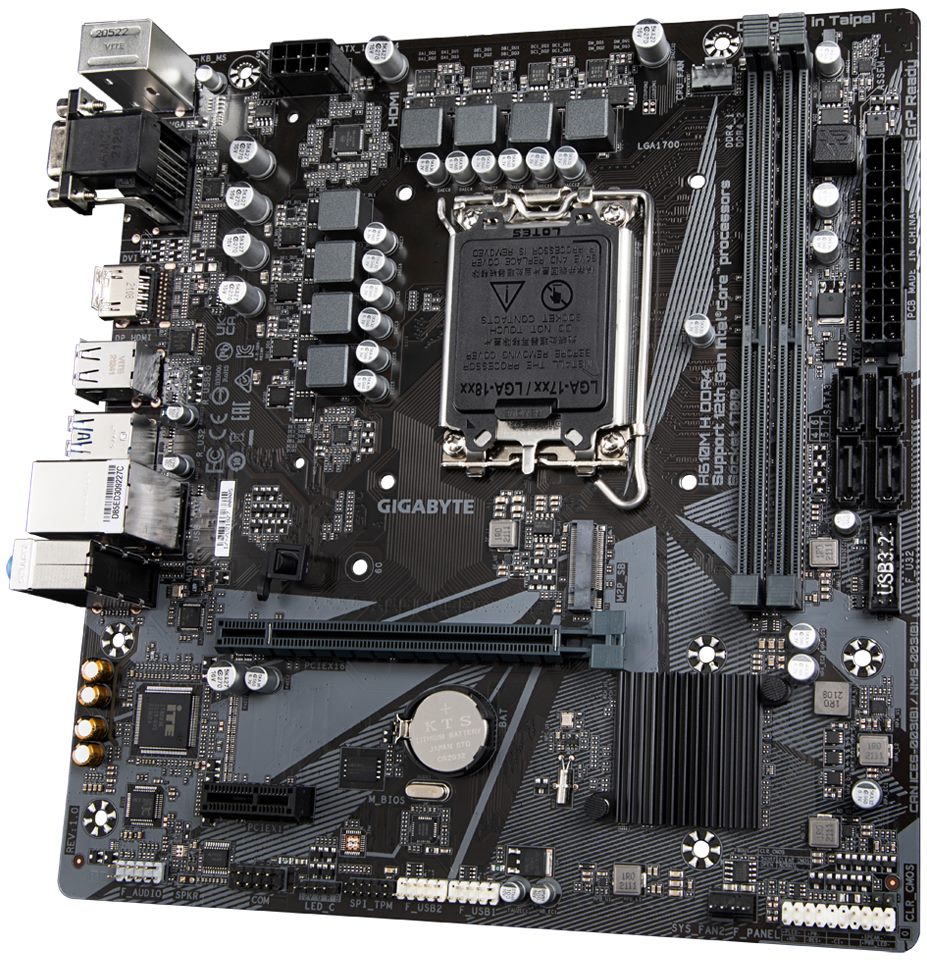

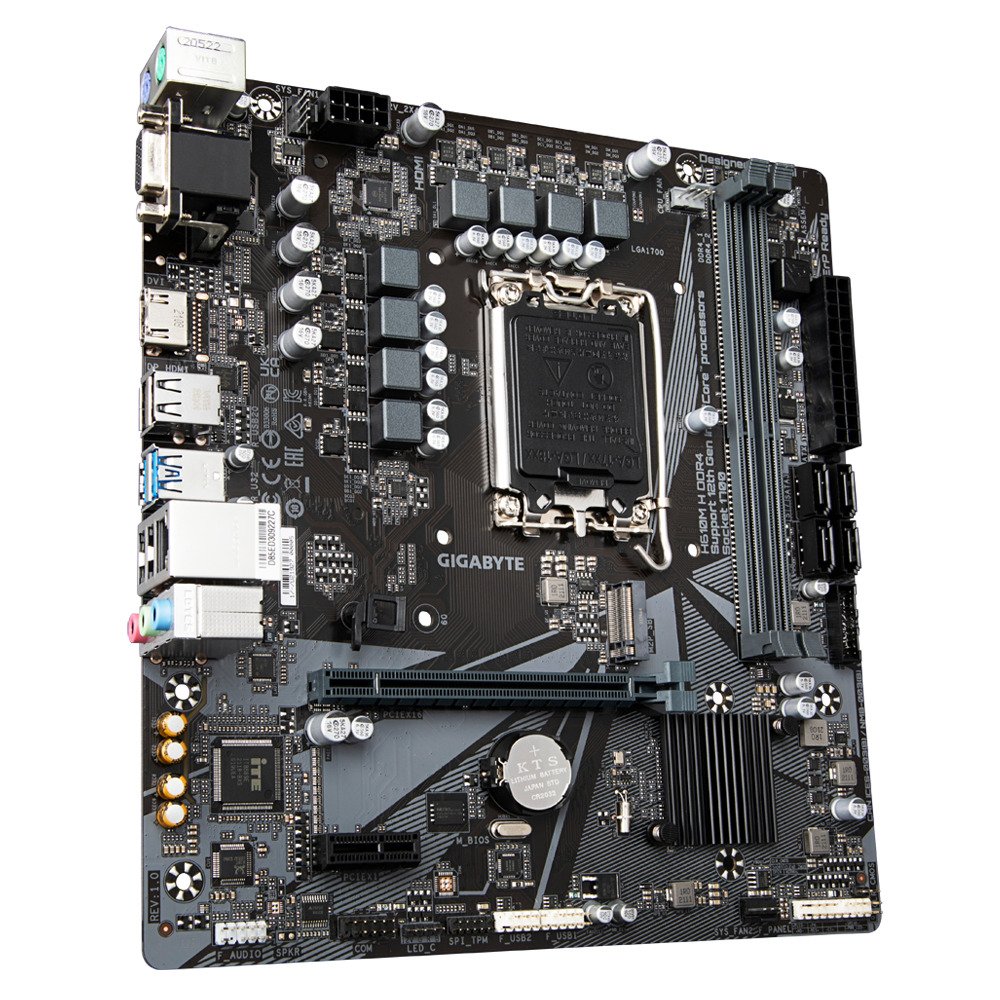

GIGABYTE H610M H DDR4/LGA 1700/mATX

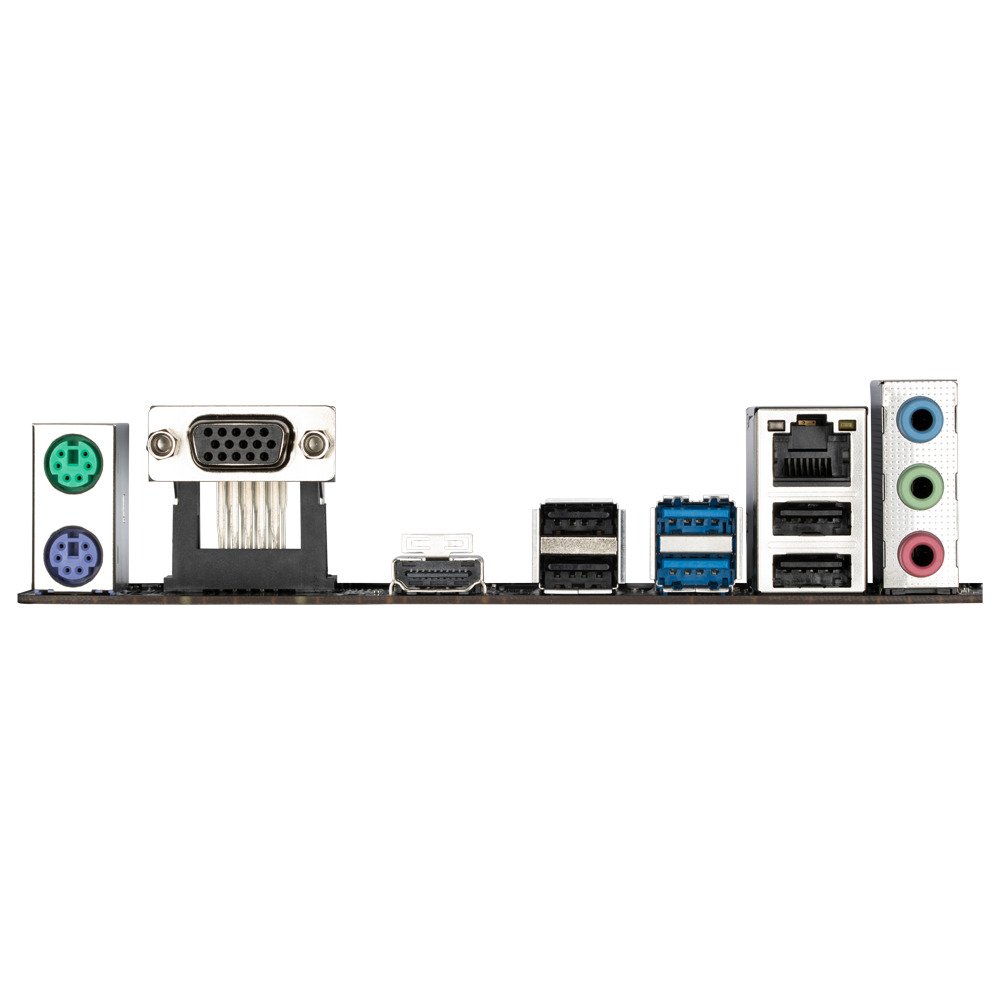

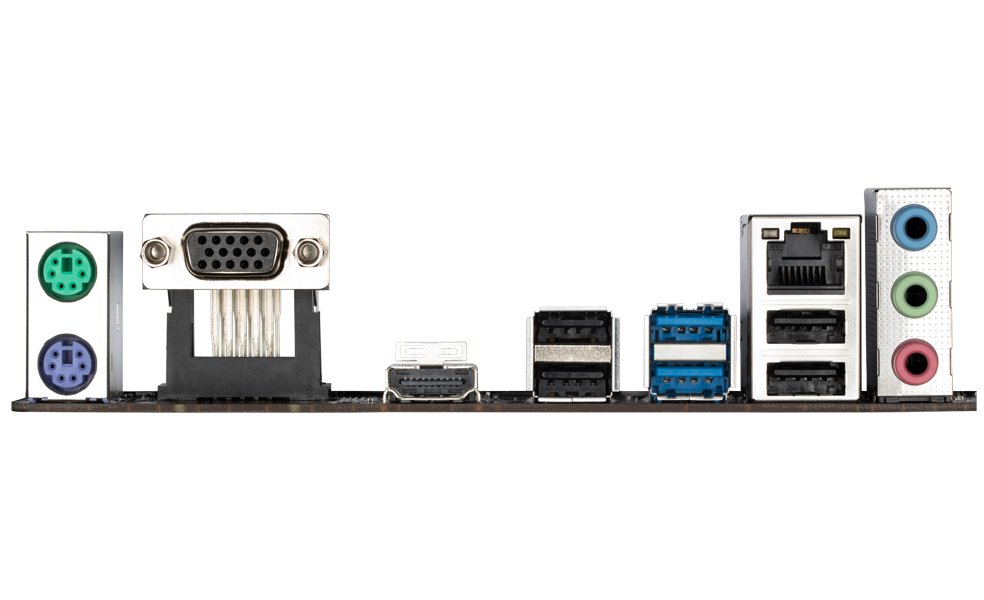

Chipset: Intel H610 Express Chipset Rozměrový formát: Micro ATX (23.0cm x 21.5cm) Podpora pro procesory: 12th Generation Intel Core, Pentium Gold and Celeron Processors Patice procesoru: LGA 1700 Pozice na paměti: 2 x DDR4 DIMM, Dual channel memory architecture Podpora pro paměti: DDR4 3200/3000/2933/2666/2400/2133 MHz Max.velikost operační paměti: 64 GB Podpora pro paměti typu: ECC, XMP Grafická karta: (Intel HD Graphics) *1 x D-Sub port - 1920x1200@60 Hz *1 x HDMI 2.1 port - 4096x2160@60 Hz Zvuková karta: Realtek Audio CODEC *2/4/5.1/7.1-channel Síťová karta: Intel GbE LAN chip (1 Gbps/100 Mbps) Rozšiřující sloty: *1 x PCI Express x16 slot, running at x16 (PCI Express 4.0 standard) *1 x PCI Express x1 slot (PCI Express 3.0 standard) SATA: 4 x SATA 6Gb/s connectors M.2: 1 x M.2 connector USB: *Interní: *1 x USB 3.2 Gen 1 header *2 x USB 2.0/1.1 headers *Externí: *2 x USB 3.2 Gen 1 ports *4 x USB 2.0/1.1 ports Interní porty: *1 x 24-pin ATX main power connector *1 x 8-pin ATX 12V power connector *1 x M.2 Socket 3 connector *4 x SATA 6Gb/s connectors *1 x CPU fan header *2 x system fan headers *1 x RGB LED strip header *1 x front panel header *1 x front panel audio header *1 x USB 3.2 Gen 1 header *2 x USB 2.0/1.1 headers *1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) *1 x serial port header *1 x Clear CMOS jumper Externí porty: *1 x PS/2 keyboard port *1 x PS/2 mouse port *1 x D-Sub port *1 x HDMI 2.0 port *2 x USB 3.2 Gen 1 ports *4 x USB 2.0/1.1 ports *1 x RJ-45 port *3 x audio jacks BIOS: AMI UEFI BIOS, 1 x 256 Mbit flash Stránka výrobce: http://www.gigabyte.com/Motherboard/H610M-H-DDR4-rev-10#kf
