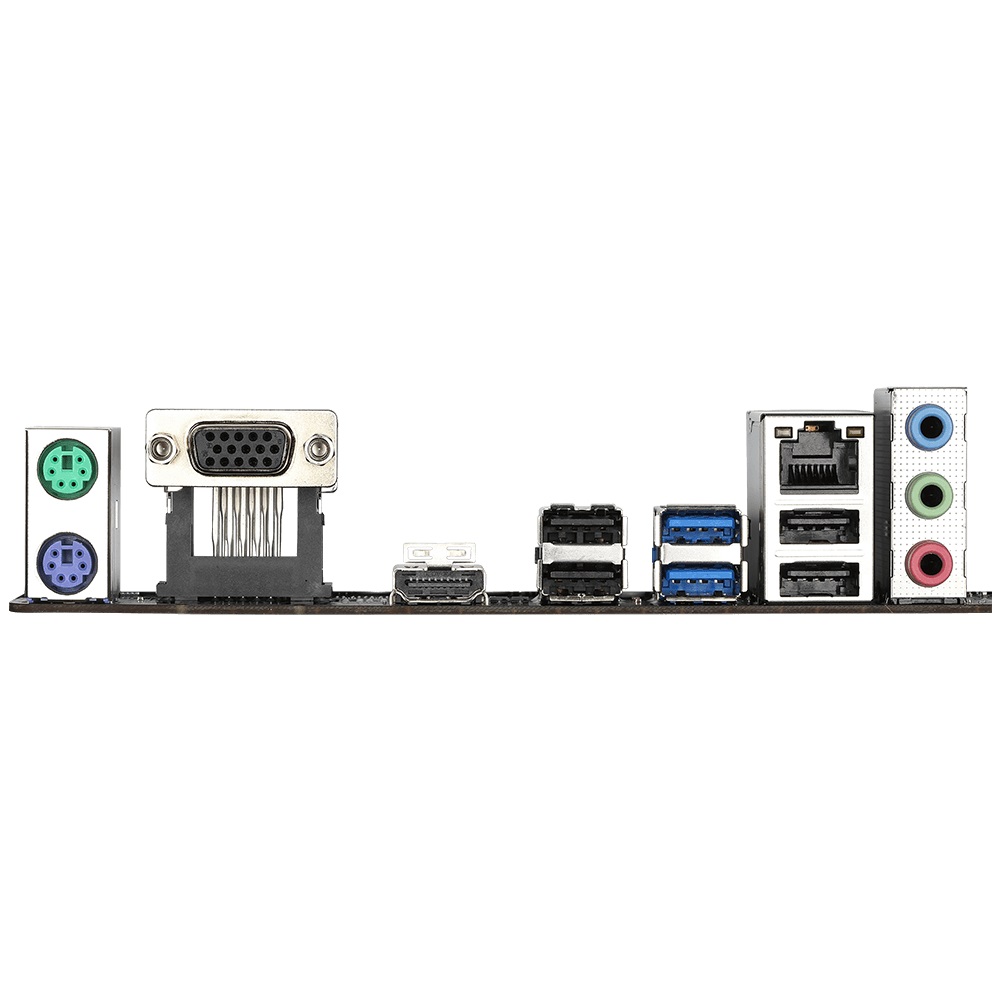

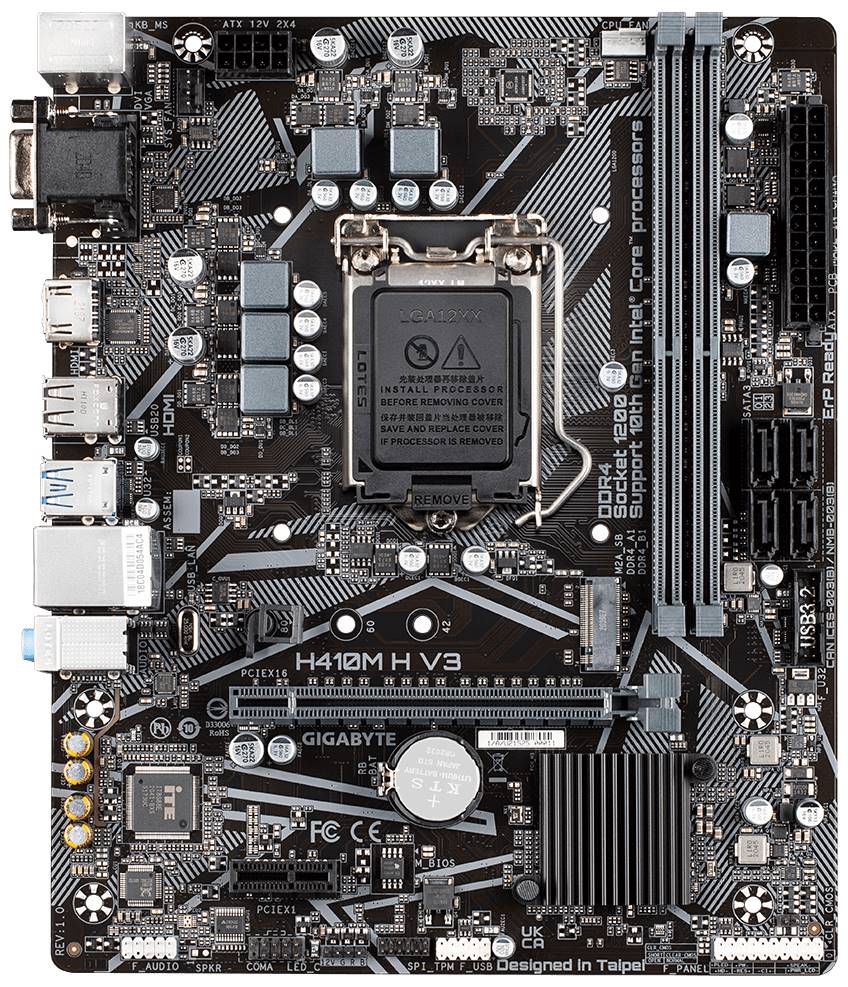

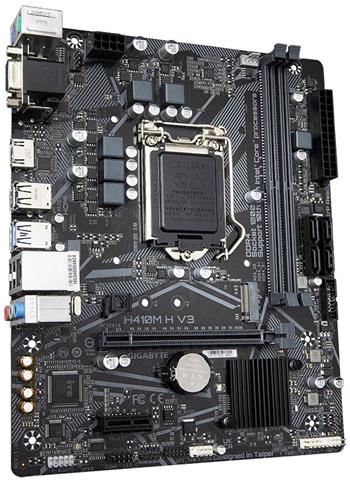

GIGABYTE H410M H V3/LGA 1200/mATX

Chipset: Intel® H410 Rozměrový formát: Micro ATX Form Factor (226 mm x 185 mm) Podpora pro procesory: Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/ Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1200 package Patice procesoru: LGA 1200 Pozice na paměti: 2x DDR4 DIMM Podpora pro paměti: *Intel® Core™ i9/i7 processors: DDR4 2933/2666/2400/2133 MHz memory modules *Intel® Core™ i5/i3/Pentium®/Celeron® processors: DDR4 2666/2400/2133 MHz memory modules Max.velikost operační paměti: 64 GB Podpora pro paměti typu: DDR4 *Dual channel memory architecture *ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) *non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules *Extreme Memory Profile (XMP) memory modules Grafická karta: *Integrated Graphics Processor (na základě procesoru) Zvuková karta: *Realtek® Audio CODEC Síťová karta: *Gigabit Ethernet Chip (1 Gbps/100 Mbps) Rozšiřující sloty: *1x PCI Express x16 slot, running at x16 *1x PCI Express x1 slot RAID řadič: Není SATA: *4x SATA 6Gb/s M.2: *1x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support) USB: *zadní USB porty (celkem 6) *2x USB 3.2 Gen 1 ports *4x USB 2.0/1.1 ports *přední USB porty (celkem 4) *2x USB 3.2 Gen 1 ports *2x USB 2.0/1.1 ports Interní porty: *1 x 24-pin ATX main power connector *1 x 8-pin ATX 12V power connector *4 x SATA 6Gb/s connectors *1 x CPU fan header *1 x system fan header *1 x RGB LED strip header *1 x front panel header *1 x front panel audio header *1 x USB 3.2 Gen 1 header *1 x USB 2.0/1.1 header *1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) *1 x serial port header *1 x Clear CMOS jumper Externí porty: *1x PS/2 keyboard port *1x PS/2 mouse port *1x D-Sub port *1x HDMI port *2x USB 3.2 Gen 1 ports *4x USB 2.0/1.1 ports *1x RJ-45 port *3x audio jacks BIOS: 1 x 256 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Stránka výrobce: https://www.gigabyte.com/Motherboard/H410M-H-V3-rev-10#kf
