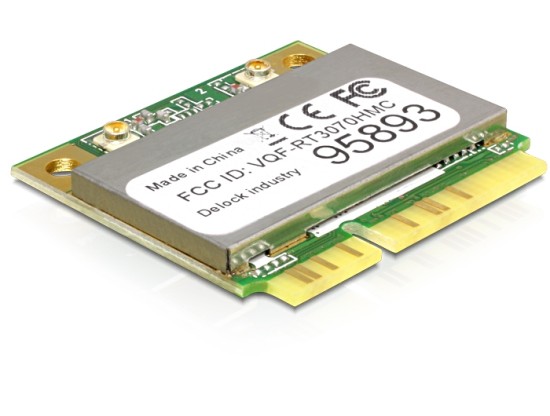

Delock industry WLAN MiniPCI Express USB 2.0 module 1T1R 150 Mbps half size

The Delock MiniPCI Express module offers in a compact construction WLAN function via MiniPCI Express interface and is ideal for installation in industry components, like sensors, IPCs, PDAs or notebooks.

Specification
• MiniPCI Express USB 2.0 type – half size
• WLAN IEEE 802.11 b/g/n
• Chipset: Ralink RT3070  MAC/BBP/Transceiver
• 2,4GHz
• WPA 1/2 - PSK 802.1x
• Encoding and decoding will be performed in hardware
• Supports WEP 64/128, WPA 1/2, TKIP und AES
• 2 antenna interfaces SMT ultra mini Coax I-PEX
• Power consumption: low power max. 304 mA
• Voltage: 3,3V +/- 0,3%
• Operating temperature: 0° ~ 65°C
• Dimension: 30 x 50,95 x 3 mm (LxWxH)
• Driver supports Windows CE 5.0, 6.0/2000/XP-32/XP-64/Vista/Vista-64/7/7-64,
 Linux 2.4.x / 2.6.x, Mac OS

System requirement
• A free MiniPCI Express slot
• Windows CE 5.0, 6.0/2000/XP-32/XP-64/Vista/Vista-64/7/7-64,
 Linux 2.4.x / 2.6.x, Mac OS

Package content
• WLAN MiniPCI Express module
• Driver CD

Package
• Delock antistatic cover
