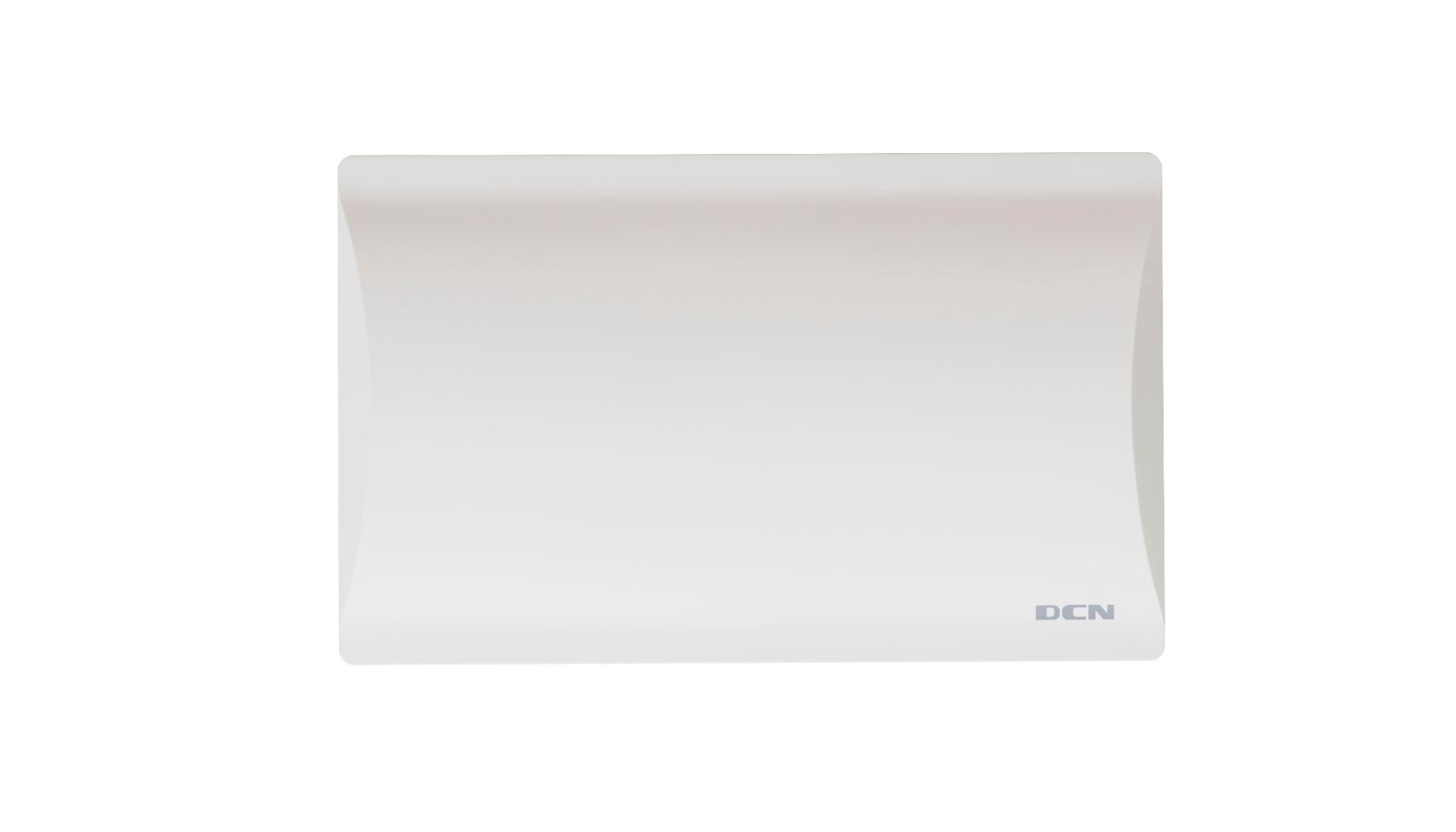

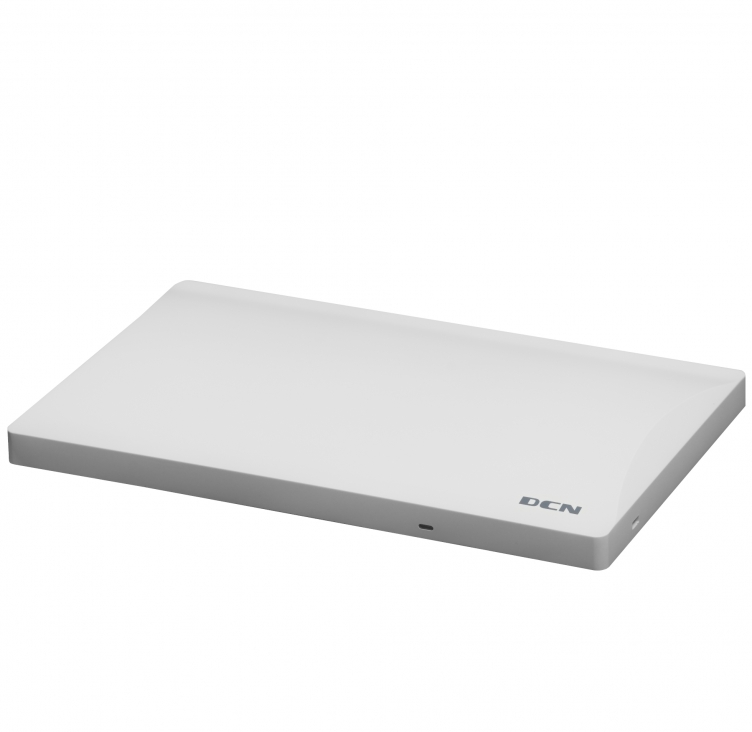

DCN - Indoor Dual-Frequecy Access Point, WL8200-X2

Indoor dual-frequency access point WL8200-X2; 1x 10/100/1000Base-T, RJ45 powered by PoE, Dual Band (2,4GHz & 5GHz), WIFI 6, MIMO 2x2, Built-in antenna, Working temperature: 0° to +50°

WL8200 series access points support solutions that increase the bandwidth of a wireless network using MIMO and MU-MIMO technologies. The can be powered by PoE (Power Over Ethernet) technology. These devices guarantee work in the 2.4GHz and 5GHz frequency range, in addition, the use of technology based on the IEEE 802.11ax standard guarantees the achievement of bandwidth up to 1.775 Gb/s, which significantly improves the quality of WiFi services.

Additional Info
Classification:
Indoor, dual-frequency access point
Working frequency band:
2.4 GHz and 5 GHz
Ports:
10/100/1000Base-T
Console port (RJ45):
1
USB 2.0 port:
1
Power Supply:
by PoE - IEEE802.3af, external adapter: input: 100~240V AC , output: 12 V DC
Dimensions (mm):
247 x 153 x 30
Operating Temperature:
0°C to +50°C
Working humidity:
10% do 90% (non-condensing)
Protection level:
IP41
Power consumption:
<13W
RF port:
Built-in antenna: 2.4GHz - 4dBi; 5GHz - 5dBi
Working frequency band:
802.11a/n/ac: 5.150 GHz - 5.850 GHz 802.11b/g/n/ax: 2.4 GHz - 2.483 GHz 802.11ax: 5.150 GHz – 5.250 GHz 5.250 GHz - 5.350 GHz 5.725 GHz – 5.850 GHz
Modulation technology:
802.11b: BPSK,QPSK,CCK 802.11a/g/n: BPSK, QPSK,16-QAM, 64-QAM 802.11ac: BPSK, QPSK,16-QAM, 64-QAM, 256-QAM 802.11ax: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM
Transmit power:
2,4GHz – 23 dBm; 5GHz – 23 dBm
Power adjustment granularity:
1 dBm
Virtual AP (BSSID):
32
Number of spatial streams:
1st module: 2,4GHz - 2; 2nd module: 5GHz – 2
WLAN:
Dynamic channel adjustment (DCA), Transmit power control (TPC), Blind area detection and repair, SSID hiding, RTS/CTS, RF environment scanning, Hybrid access, Restriction on the number of access users, Link integrity check, Intelligent control of terminals based on airtime fairness, Prohibiting the access of terminals with weak signals, Forced roaming of terminals with weak signals
11n Extensions:
40MHz Channel, 300 Mb/s (PHY), Frames aggregation (A-MPDU, A-MSDU), Maximum likelihood demodulation (MLD), Transmit beam forming (TxBF), Maximum ratio combining (MRC), Space-time block coding (STBC), Low-density parity-check code (LDPC)
Security:
64/128 WEP, TKIP, and CCMP encryption, IEEE 802.11i - WPA2, WAPI, MAC address authentication, LDAP authentication, PEAP authentication, WIDS/WIPS, Real-time spectrum protection, Anti-DoS for wireless management packets, Frame filtering, white list, static blacklist, and dynamic blacklist, AP L2 forwarding suppression Isolation between virtual APs (multiple SSIDs), Periodic SSID enabling and disabling, Access control of free resources, Secure admission control of wireless terminal, Wireless SAVI, Access control of various data packets such as MAC, IPv4, and IPv6 packets, Secure access control of APs, such as MAC authentication, password authentication, or digital certificate authentication between an AP and an AC
Forwarding:
Static IP address configuration or dynamic DHCP address allocation, IPv6 forwarding , IPv6 portal, Local forwarding, Multicast, Roaming, AP switching reference, WDS
QoS:
WMM, Priority mapping, QoS policy mapping, L2-L4 packet filtering and flow classification, Load balancing, Bandwidth limit, Call admission control (CAC), Power saving mode, Automatic emergency mechanism of APs, Intelligent identification of terminals, Wireless network VAS, Multicast enhancement
Management:
Centralized management through an AC; both fit and fat modes; Both local and remote maintenance, Local logs, Syslog, and log file export, Alarm, Fault detection, Statistics, Switching between the fat and fit modes, Remote probe analysis, Watchdog, Dual-image (dual-OS) backup mechanism
