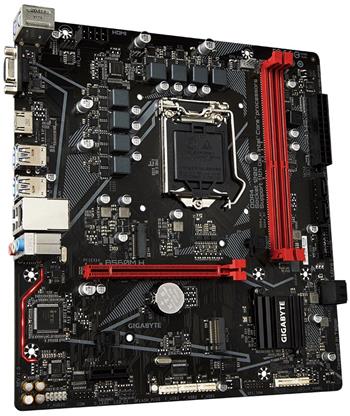

GIGABYTE B560M H/LGA 1200/mATX

Chipset: Intel® B560 Rozměrový formát: Micro ATX Form Factor (244 mm x 225 mm) Podpora pro procesory: *11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors *10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors Patice procesoru: LGA 1200 Pozice na paměti: 2x DDR4 DIMM Podpora pro paměti: *11th Generation Intel® Core™ i9/i7/i5 processors: DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules *10th Generation Intel® Core™ i9/i7 processors: DDR4 2933/2666/2400/2133 MHz memory modules *10th Generation Intel® Core™ i5/i3 /Pentium®/Celeron® processors: DDR4 2666/2400/2133 MHz memory modules Max.velikost operační paměti: 64 GB Podpora pro paměti typu: DDR4 *Dual channel memory architecture *ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) *non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules *Extreme Memory Profile (XMP) memory modules Grafická karta: *Integrated Graphics Processor (na základě procesoru) Zvuková karta: *Realtek® Audio CODEC Síťová karta: *Realtek® GbE LAN chip (1 Gbit/100 Mbit) Rozšiřující sloty: *1x PCI Express x16 slot, running at x16 (PCIEX16) *1x PCI Express x1 slot (PCIEX1) RAID řadič: Není SATA: *4x SATA 6Gb/s M.2: *1x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU) *1x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB) USB: *zadní USB porty ( celkem 6 ) *4x USB 3.2 Gen 1 ports *2x USB 2.0/1.1 ports *přední USB porty ( celkem 8 ) *2x USB 3.2 Gen 1 ports *6x USB 2.0/1.1 ports Interní porty: *1x 24-pin ATX main power connector *1x 8-pin ATX 12V power connector *1x CPU fan header *1x system fan header *1x addressable LED strip header *1x RGB LED strip header *2x M.2 Socket 3 connectors *4x SATA 6Gb/s connectors *1x front panel header *1x front panel audio header *1x USB 3.2 Gen 1 header *3x USB 2.0/1.1 headers *1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) *1x serial port header *1x Clear CMOS jumper *1x Q-Flash Plus button Externí porty: *1x PS/2 mouse port *1x PS/2 Keyboard port *1x D-Sub port *1x HDMI port *4x USB 3.2 Gen 1 ports *2x USB 2.0/1.1 ports *1x RJ-45 port *3x audio jacks BIOS: 1 x 256 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Stránka výrobce: https://www.gigabyte.com/Motherboard/B560M-H-rev-10
