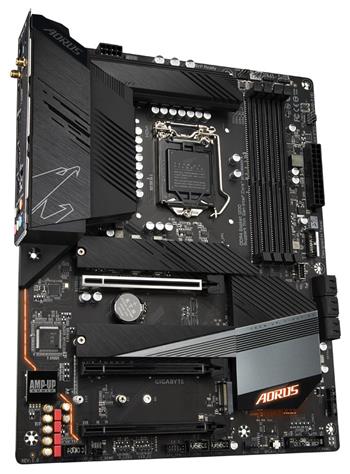

GIGABYTE B560 AORUS PRO AX

Chipset: Intel® B560 Express Chipset Rozměrový formát: ATX Form Factor (305 mm x 244 mm) Podpora pro procesory: 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors + 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors Patice procesoru: LGA 1200 Pozice na paměti: 4x DDR4 DIMM Podpora pro paměti: *11th Generation Intel® Core™ i9/i7/i5 processors: *Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules *10th Generation Intel® Core™ i9/i7 processors *Support for DDR4 2933/2666/2400/2133 MHz memory modules *10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors: *Support for DDR4 2666/2400/2133 MHz memory modules Max.velikost operační paměti: 128 GB Podpora pro paměti typu: DDR4 *Dvoukanálová architektura paměti *Podpora paměťových modulů ECC Un-buffered DIMM 1Rx8/2Rx8 (pracuje jako non-ECC mode) *Podpora paměťových modulů non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 *Podpora paměťových modulů s XMP profilem (Extreme Memory Profile) Grafická karta: Integrovaná v závislosti na CPU Multi-GPU: *AMD Quad-GPU CrossFire™ *2-Way AMD CrossFire™ Zvuková karta: *Realtek® ALC4080 codec Síťová karta: *Intel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) *Intel® Wi-Fi 6E AX200 *Bluetooth 5.1 Rozšiřující sloty: *1x PCI Express x16 slot, running at x16 (PCIEX16) *1x PCI Express x16 slot, running at x4 (PCIEX4) *1x PCI Express x16 slot, running at x1 (PCIEX1) SATA: *6x konektor SATA 6 Gb/s M.2: *1x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU) *1x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)(M2A_SB) *1x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 3.0 x4/x2 SSD support) (M2B_SB) USB: *zadní USB porty (celkem 8) *1x USB 3.2 Gen 2x2 Type-C® port *1x USB 3.2 Gen 2 Type-A port (red) *4x USB 3.2 Gen 1 ports *2x USB 2.0/1.1 ports *přední USB porty (celkem 7) *1x USB 3.2 Gen 1 Type-C® port *2x USB 3.2 Gen 1 ports *4x USB 2.0/1.1 ports Interní porty: *1x 24-pin ATX main power connector *1x 8-pin ATX 12V power connector *1x CPU fan header *1x water cooling CPU fan header *3x system fan headers *2x addressable LED strip headers *2x RGB LED strip headers *3x M.2 Socket 3 connectors *6x SATA 6Gb/s connectors *1x front panel header *1x front panel audio header *1x USB Type-C® header, with USB 3.2 Gen 1 support *1x USB 3.2 Gen 1 header *2x USB 2.0/1.1 headers *1x S/PDIF Out header *2x Thunderbolt™ add-in card connectors *1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) *1x Clear CMOS jumper *1x Q-Flash Plus button Externí porty: *1x PS/2 keyboard/mouse port *1x DisplayPort *1x HDMI port *2x SMA antenna connectors (2T2R) *1x USB Type-C® port, with USB 3.2 Gen 2x2 support *1x USB 3.2 Gen 2 Type-A port (red) *4x USB 3.2 Gen 1 ports *2x USB 2.0/1.1 ports *1x RJ-45 port *6x audio jacks BIOS: 1x 256 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Stránka výrobce: https://www.gigabyte.com/Motherboard/B560-AORUS-PRO-AX-rev-10
