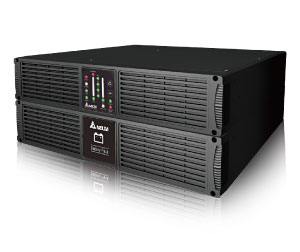

Delta UPS 1KVA OnLine GAIA

The Amplon GAIA series is a true on-line, double-conversion UPS designed in a rack or tower configuration and recommended for servers, VoIP, telecommunications and networking.This versatile UPS combines features such as full-time protection and high input power factor in the small footprint of a 2U cabinet.

The Amplon GAIA series UPS has inbuilt batteries to provide continuous and stable power to your critical loads when power events occur. With an external battery pack, it can fulfill longer backup time requirements.

Features

Double-conversion technology provides 24/7 full-time protection.

Built-in batteries for basic runtime demands.

Battery-start capability without utility power.

RS232 and USB connectivity with power management software.

Built-in data line surge protector for phone/fax/network.

Rack or tower configuration in 2U size cabinet.

Optional external battery pack for longer backup time.

SNMP slot for mission critical applications.

Programmable output saves energy for important loads.

Wide input voltage range and stable power supply extends battery lifetime.

High input power factor (pf > 0.97) saves installation cost.

Intelligent management prevents battery from overdischarge.

Technical Specifications



Model: GAIA-1K
Power Rating: 1kVA/800W

Input
Nominal Voltage: 200/208/220/230/240 Vac (single phase)
Voltage Range: 130 ~ 275 Vac
Frequency: 50 or 60 ± 5 Hz
Power Factor > 0.97
Electrical Connection: Power cord (IEC320 C14)

Output
Voltage: 200/208/220/230(default)/240 Vac (single phase) *
Voltage Harmonic Distortion: < 3% (linear load), < 6% (computer load)
Voltage Regulation ± 2%
Frequency 50 or 60 ± 0.05 Hz
Wave Form: Pure sine wave

Overload Capability
105 ~ 125%: 3 minutes
125 ~ 150%: 30 seconds
> 150%: 0.5 second

Receptacle: IEC320 C13 x 3 x 2

Battery
Rating: 12V/8.5Ah, 2 pcs

Charge Current: 0.6 ~ 1.2A (default 0.8A)

Typical Backup Time : 12 minutes (half load), 4 minutes (full load)

Interface
Standard
RS232 x 1, USB x 1, SNMP slot x 1

Conformance

Safety
CE, EN62040-1

EMC: EN62040-2 Class B

Other Features

Data Line Protector: Built-in (RJ11/RJ45, phone and network)

REPO
RJ11 connector

Rail Kit: volitelně

Tower Stand Kit: v balení

External Battery Pack: volitelně

Efficiency
AC-AC > 87% (full load)

Environment

Operating Temperature: 0 ~ 40oC
Relative Humidity: 5 ~ 95% (non-condensing)
Audible Noise (at one meter): 45 dBA

Physical
UPS Dimensions(WxDxH): 440 x 335 x 89 mm
UPS Weight: 13 kg
