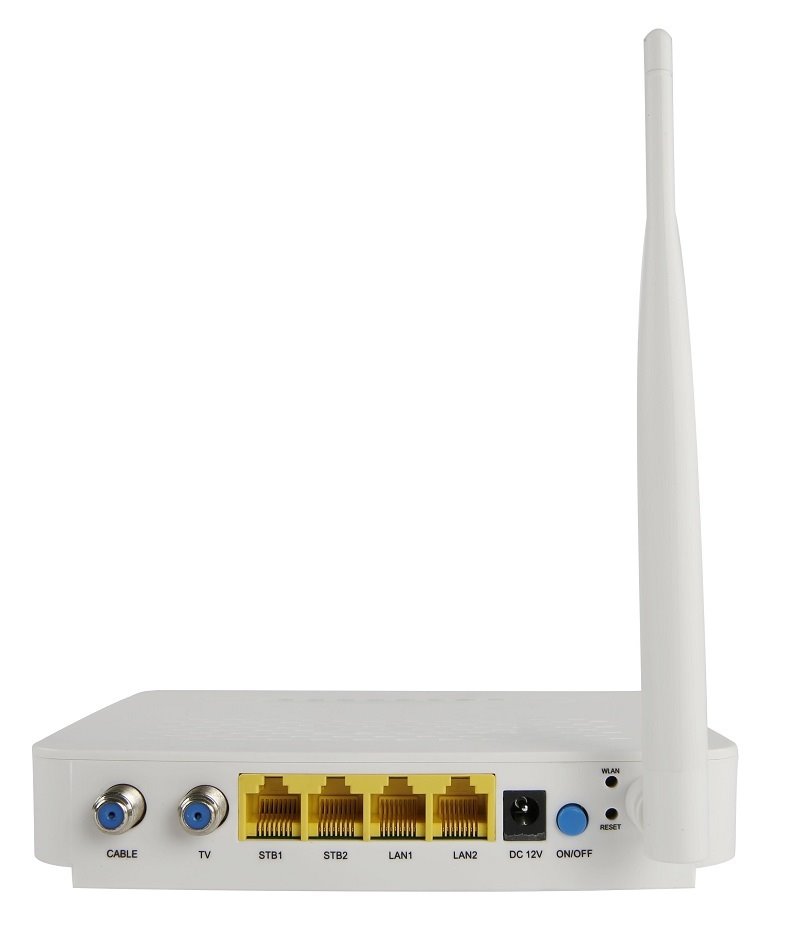

Wodaplug EOC Slave+2*2 11n WiFi EOC1121R4WL-R, 600Mbps,4*LAN,2*F

Jednotka EoC slave s WiFi je určena pro koncové uľivatele, kteří ji chtějí vyuľít i jako WiFi router s NAT a nebo Brdige, spolupracuje s EoC master jednotkou na navázání spojení a přenosu sítě Ethernet přes koaxiální rozvod. Z mixed signálu opět převede data na výstup Ethernet+WiFI a signál TV na výstup TV. Vlastní IP adresa.

Specification
Item Specification - Model Number - EOC1121R4WL-R
Chipset Reaktek, RTL8198
Protocol EOC standard : HomePlug AV/ IEEE P1901(Draft); Etherent protocol > IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3x,HTTP, SNMP, TELNET
Phisycal Speed 600Mbps
Modulation Bandwidth 7.5 MHz~65 MHz
Modulation Technology OFDM-2690-carriers,4096/1024/256/64/16/8-QAM, QPSK, BPSK, ROBO
Max. Slave number 256
Encryption mode 128-bit AES encrypted
VLAN Support max. 16 VLANs
Limitation of port speed Support minimum 64Kbps granularity
QoS Support VLAN priority
Working mode CSMA/CA
Multicast support Support IGMP manage Multicast diagram
Management mode Support SNMP, WEB, CLI multi-managed mode

Interface Features
Ethernet Interface 4*10/100M Ports
Coax. Cable Interface 1*Female Connector, IP signal output


LED Indication
Ethernet Network connection indicator
Power Power connection indicator
Data Cable connection indicator

RF Performance
Impedance 75Ohm
Transmit Power 0±3dBm
Reflection loss >16dB
Insertion loss less than 1dB
Receiving sensitivity -65dB

Electrical Characteristics
Power Consumption ?5W
Power Supply 12VAC/5A

Environment Features
Working Temperature 0?~50?
Storage Temperature -40?~80?
Working Humidity 10%~90%, non-condensation
Storage Humidity 5%~90%, non-condensation
Environmental standards RoHS
